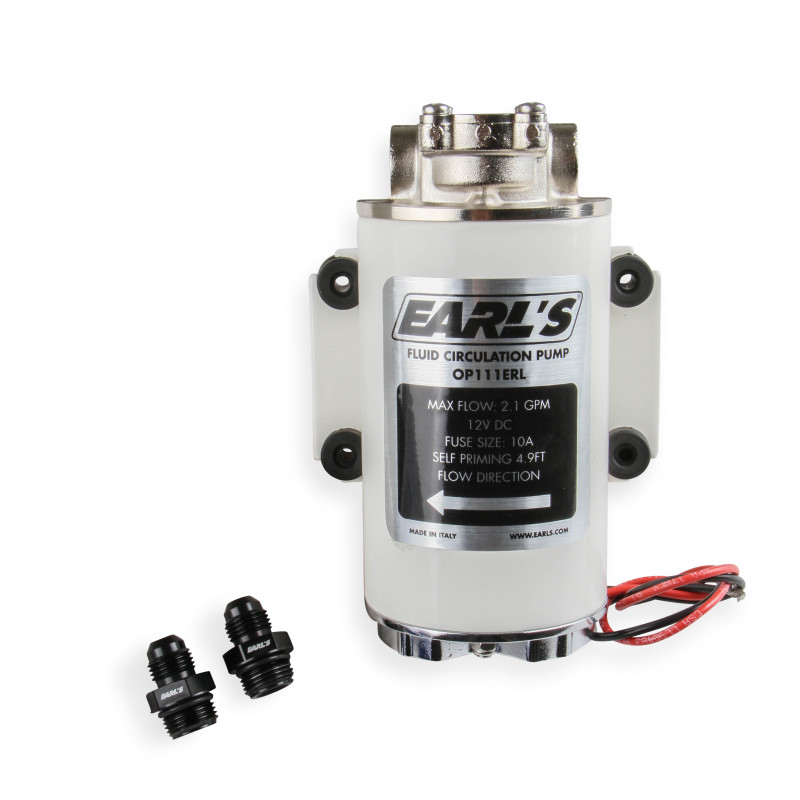

Earls electric oil pump is ideal for circulating the gear oil through an external oil cooler - for cooling the differential or manual transmission. This heavy duty pump features a metal housing & is self-priming w/ a flow rate of up to 2.1 gallons per minute. The compact design is durable and has a continuous duty rating (see temperature range shown below). This pump includes (2) -6 AN Male to BSPP adapter fittings. Ideal for use with Earl's UltraPro oil cooler along w/ AN hose & hose ends.

Features

Electric Oil Pump

Amp Draw: 10 Amps

Flow Rate: Up to 2.1 GPM (7.9 LPM)

Pressure: 72.5 PSI (5 Bar) Max

Maximum Oil Weight: 90W Gear Oil

Weight 5.5 lb (2.5 kg)

Voltage: 12-Volt DC

Brass Housing w/ Nickel Plated Finish

Temperature Range: 14 to 160° F (-10 to 71° C) Continuous Duty; 265° (130° C) Max -Intermittent Use

Overall Dimensions: 6-1/2” Tall x 4-5/8” Wide x 3-3/4 Deep

Mounting Bolt Pattern: 4-Bolt w/ 2-1/4” Tall x 3-3/4” Wide

Rubber Vibration Isolators on Each Mount

Ideal for Cooling Manual Transmission or Differential Using External Oil Cooler

Inlet & Outlet on Pump: 3/8 BSPP (British Standard Pipe Parallel) straight thread

Includes (2) -6 AN Male to 3/8 BSPP Adapter Fittings

Self-Priming – Up to 4 Ft. of Vertical Height

Seal Material: FKM Rubber

Use w/ Relay & Fuse (available separately)
